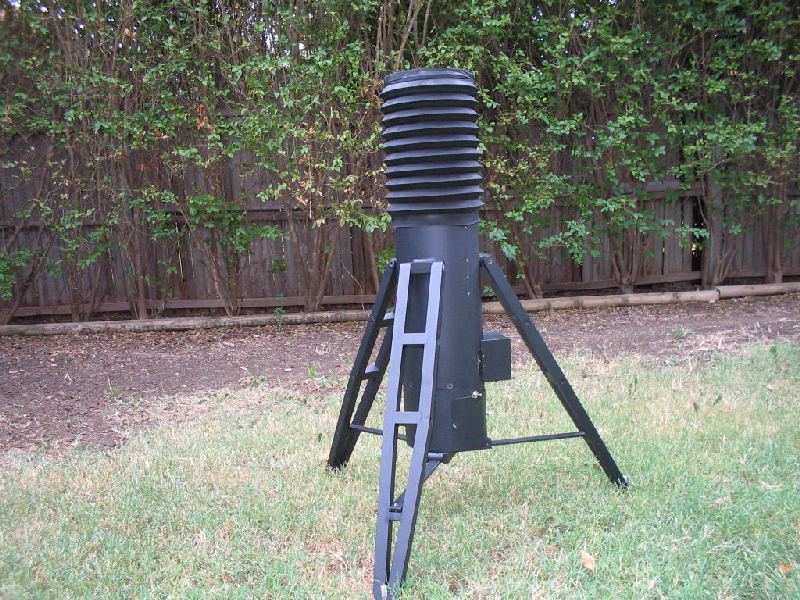

This is a new product for us. It is an adjustable height pier-tripod hybrid. It allows an owners telescope mount to be raised up or down 9 inches from an internal motor operated with a thumb sized remote control.
Manually adjustable pier pods are still available too.

The primary customer use is for someone who has a long focal length refractor or bino scope. It will raise the eyepiece on your optics up or down 9 full inches with the touch of a button. Images in the eyepiece will stay in the FOV at 100x if the mount is leveled properly at set-up.
Some users in observatories may find this feature useful too.

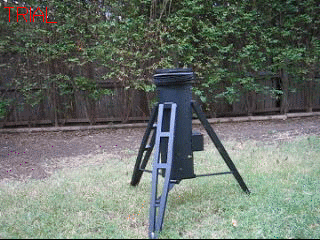

Click here to get a 1 meg. animated GIF file of the pier in motion.


We will make nearly any pier to your general specification without a motorized element as well. Our pricing is very competitive and our service is excellent.

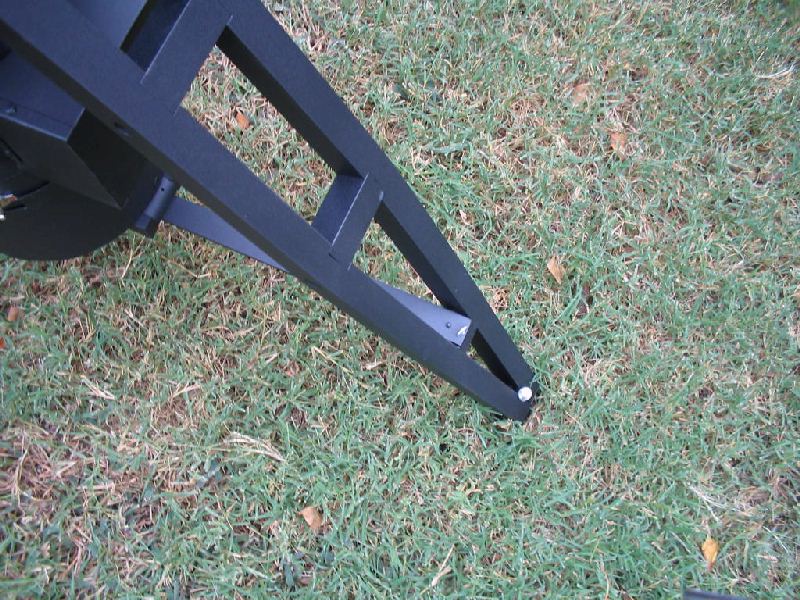

One of the legs. The horizontal bar at the bottom is held with a post for alignment and a threaded hole for securing it.











The top with the T-slot. All that is required of your mount is a flat surface on the bottom. The bolt head is held inside the slot. Other mounting parts can be added as needed before shipment.

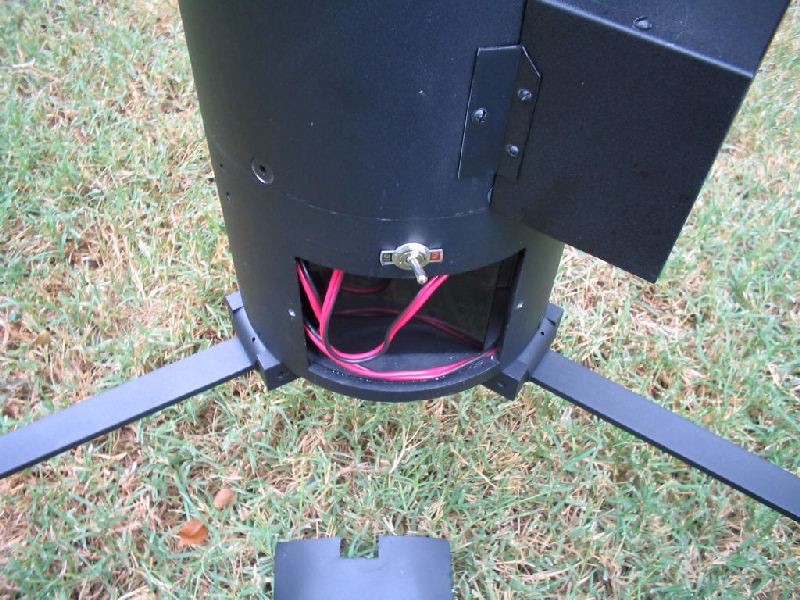

The battery box, motor cover and switch.

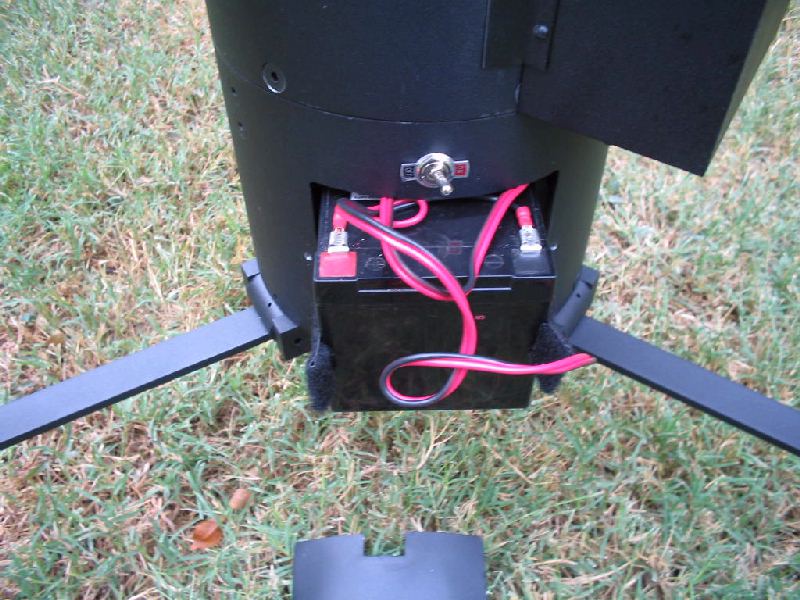

A 12 amp hour battery just fits inside.










  • Each pier-pod will be made to suit the customer's specifications. This includes height retracted and extended, OD, etc.
  • The battery fits inside the pier.
  • There is a switch on the exterior to manually turn off the motor.
  • It takes 40 seconds to raise the pier all the way up.
  • Weight is 65 lbs. in this size.
  • Weight capacity is over well 250 lbs.
  • Top plate is 1"x 8" solid aluminum with a T-slot for the mount.
  • The outer pipe is 8" OD.
  • The inner pipe is 6" OD.
  • Material is primarily aluminum, 6061-T6.
  • The slides are aluminum and hard steel.
  • Leveling feet move 4" with a screwdriver.
  • The legs are 1" solid square aluminum bars.
  • Leg joints are bolted together with 1/2" steel bolts, recessed.
  • The legs attach via curved blocks welded to the outer pier.
  • Legs are foldable or removable for transport.
  • Finish is powder coated, black or the color of your choice.
As these are custom orders, pricing is by e-mail only.

Conversion design by Lenord Stage
